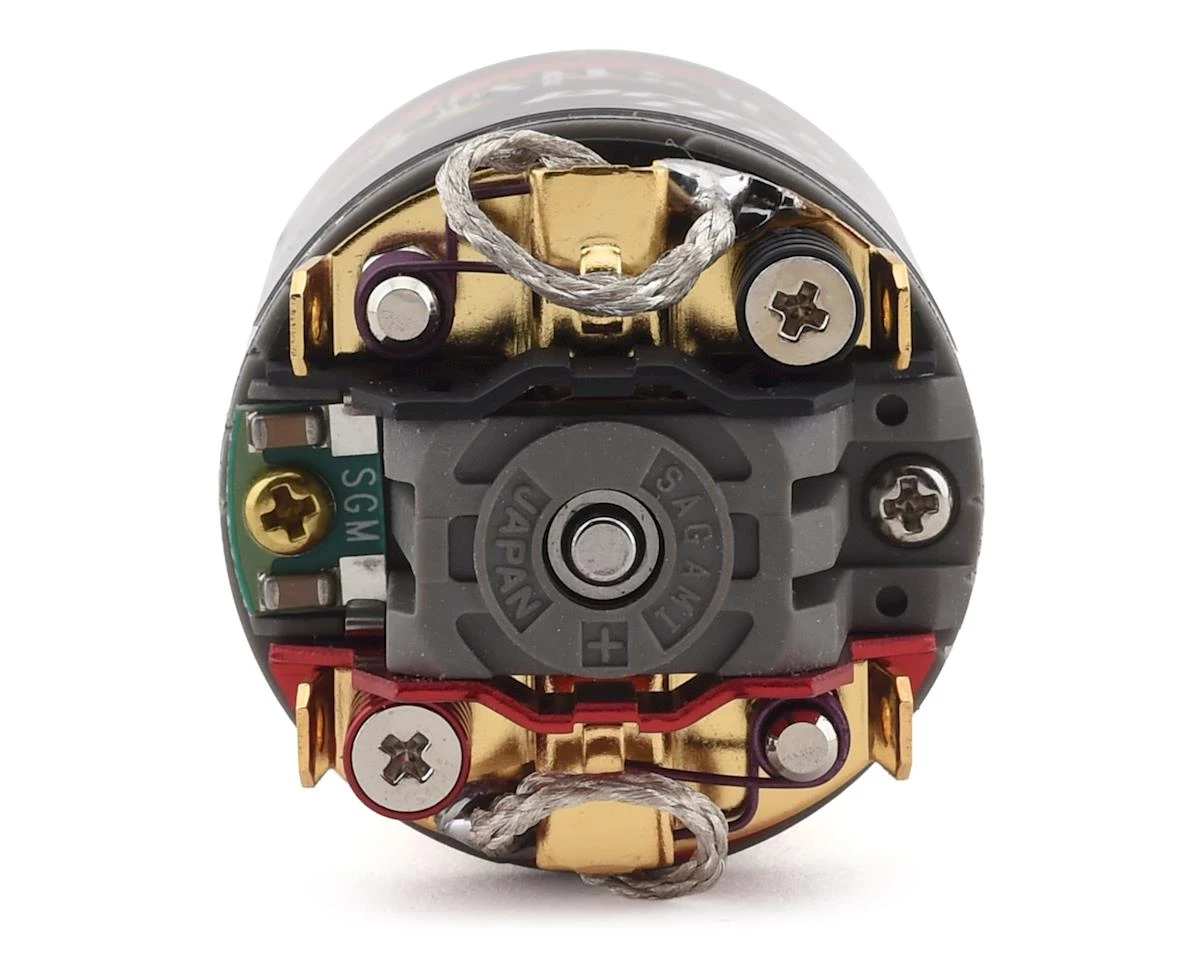

Team Brood Apocalypse Hand Wound 540 3 Segment Dual Magnet Brushed Motor (27T)

The Team Brood Apocalypse Hand Wound 540 3 Segment Dual Magnet Brushed Motor provides insane torque and power, with the instantaneous dirt slinging, gap jumping, rock shredding wheel speed you’ve been waiting for. The Apocalypse is based on Team Brood’s 2-Magnet Teardown, a power plant designed specifically to make insane torque and have superior braking and holding power over Team Brood’s 4-magnet teardown.

Developed with real world knowledge, the Apocalypse is an incredible competition ready power plant that delivers real world wins. Every Apocalypse motor is custom built from the ground up. The armatures are hand wound with precision, using optimized wire gauges for ultimate horsepower. Each armature is epoxy dipped to ensure durability and drill balanced to a zero tolerance for the smoothest power delivery possible. The rigorous assembly process includes hand shimming, precise brush hood alignment, low impact break-in, and dyno testing to create one of the most powerful motors you can strap into your truck.

Features:

• Dual Magnet Can: TDK FB9 magnets maximize torque and brake strength
• 1.4mm thick Chrome Plated Can: Strengthens the magnetic field for maximum torque and braking with a durable finish
• Onboard Surface Mount Capacitors: Reduces radio interference caused by electric motors
• Adjustable Timing: Fine tune the motors powerband to optimal settings
• Rebuildable: Can be rebuilt to provide maximum power and longevity
• Dual Precision Ball Bearings: Reduces friction provides increased efficiency and power
• Aluminum Heatsinks: Additional cooling provides for a more efficient motor
• Laydown Brushes: Long lasting performance
• Springs: Optimal Tension Springs
• Warranty: 30 Day Limited through manufacturer

Hand-Wound Armature:

• 27 Turn
• Processed from start to finish using the state of the art techniques, materials and equipment
• Pattern wound by the best winders in the world using the highest grade copper wire
• Welded using high-tech silver brazing rod
• Epoxy dipped with the aerospace grade epoxy resin
• Precision drill balanced
• Tested with precision meters
• Engraved with the wind on the armature shaft

Build Features:

• Diamond Trued Commutator: Provides a perfectly round cut
• Zapped Magnets: Assures magnets are at full and even strength
• Cleaned and Lubed Bearings: Allows for the smoothest operation
• Precision-Spaced Armature: Centers the Armature in the magnetic field with minimal play
• Precision-Measured Springs: Assures both springs are at the optimal tension
• Aligned Brush Hoods: Allows the brushes to make full contact allowing even wear and max power
• Tested: Each component is tested on precision calibrated equipment
• Dyno-Tuned: Guarantees the motor is producing its maximum power, rpm and torque

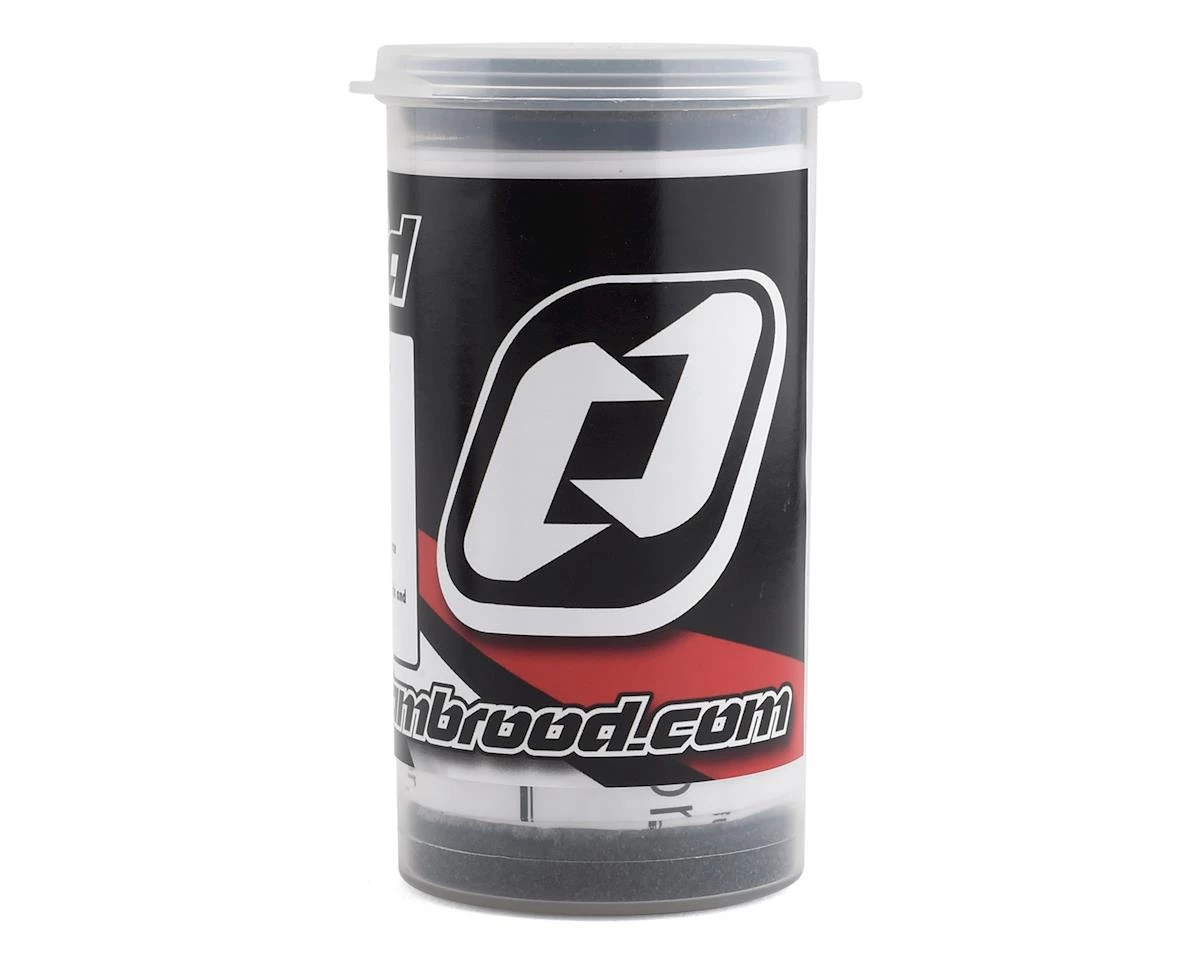

• Fully Broken-In: Ready to install and run when you pull it out of the tube

Specifications:

• Motor:
• Poles: 2
• Magnets: Dual TDK FB9
• Brush Style: Laydown
• Voltage Input: 3.7v-14.8v
• Break-In: 570 seconds at 3 volts, 30 seconds at 3.5 volts
• Timing: 0°
• Rotation: Normal
• Kv: 2125Kv
• Armature:
• Construction: Handwound
• Stack Design: Straight
• Slots: 3
• Wire Type: Copper Round
• Balance Type: Drill
• Turns: 27
• Motor Dimensions:
• Weight: 6 ounces
• Length: 54mm (2.125″)
• Diameter: 35.85mm (1.41″)
• Shaft Size: 3.175mm (1/8th)
• Mounting Pattern: Standard 540 M3x25mm
