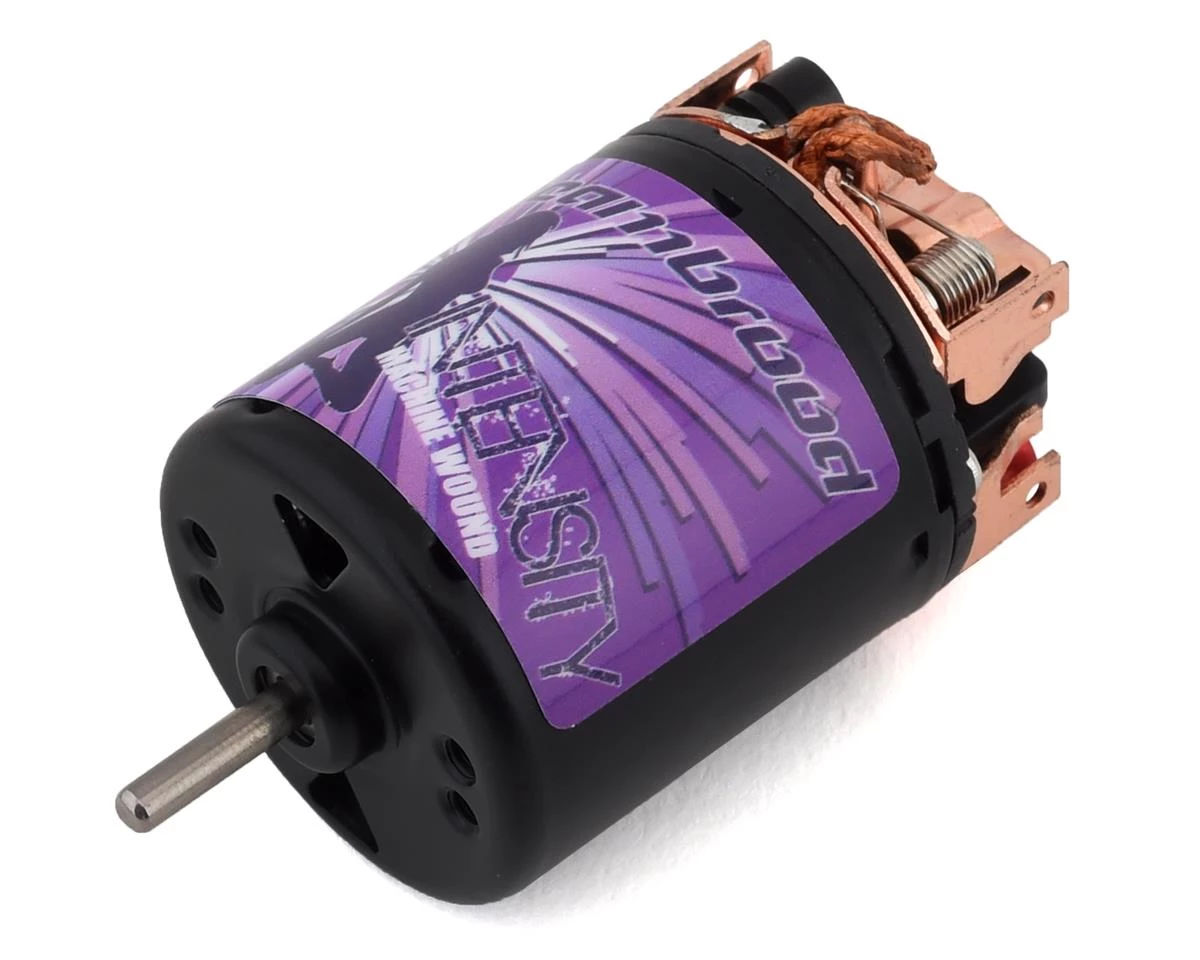

Team Brood Intensity V2 Machine Wound 540 3 Segment Brushed Motor (45T)

The Team Brood Intensity V2 Machine Wound 540 3 Segment Dual Magnet Brushed Motor is a budget friendly motor option that doesn’t skimp on features or power. The Intensity V2 features a skewed 3-slot armature, to deliver smoothness on par with a 5 slot arm, without the loss in torque delivery and brake strength.

Intensity series motors have been built using a strict assembly process that includes hand shimming the armature and precision brush hood alignment, and is then finished off with a low impact break in and dyno test to ensure that each motor meets strict criteria. This is done to extract all the power from this machined wound option, that gives budget conscious crawlers a higher quality choice when compared to standard machine wound motors.

Features:

• Skewed Armature: Offers smoother startup than a straight stack armature, without negatively affecting torque delivery or brake strength
• Dual Magnet Can: HG6 magnets maximize torque and brake strength
• 1.4mm Thick Can: Strengthens the magnetic field for maximum torque and braking with a durable finish
• Adjustable Timing: Fine tune the motors powerband to optimal settings
• Rebuildable: Can be rebuilt to provide maximum power and longevity
• Dual Precision Ball Bearings: Reduces friction provides increased efficiency and power
• Aluminum Heatsinks: Additional cooling provides for a more efficient motor
• Standup Brushes: Long lasting performance
• Springs: Optimal Tension Springs
• Machine Wound: Delivers consistent and reliable performance, at a more affordable price
• Warranty: 30 Day Limited through manufacturer

Build Features:

• Cleaned and Lubed Bearings: Allows for the smoothest operation
• Precision-Spaced Armature: Centers the Armature in the magnetic field with minimal play
• Precision-Measured Springs: Assures both springs are at the optimal tension

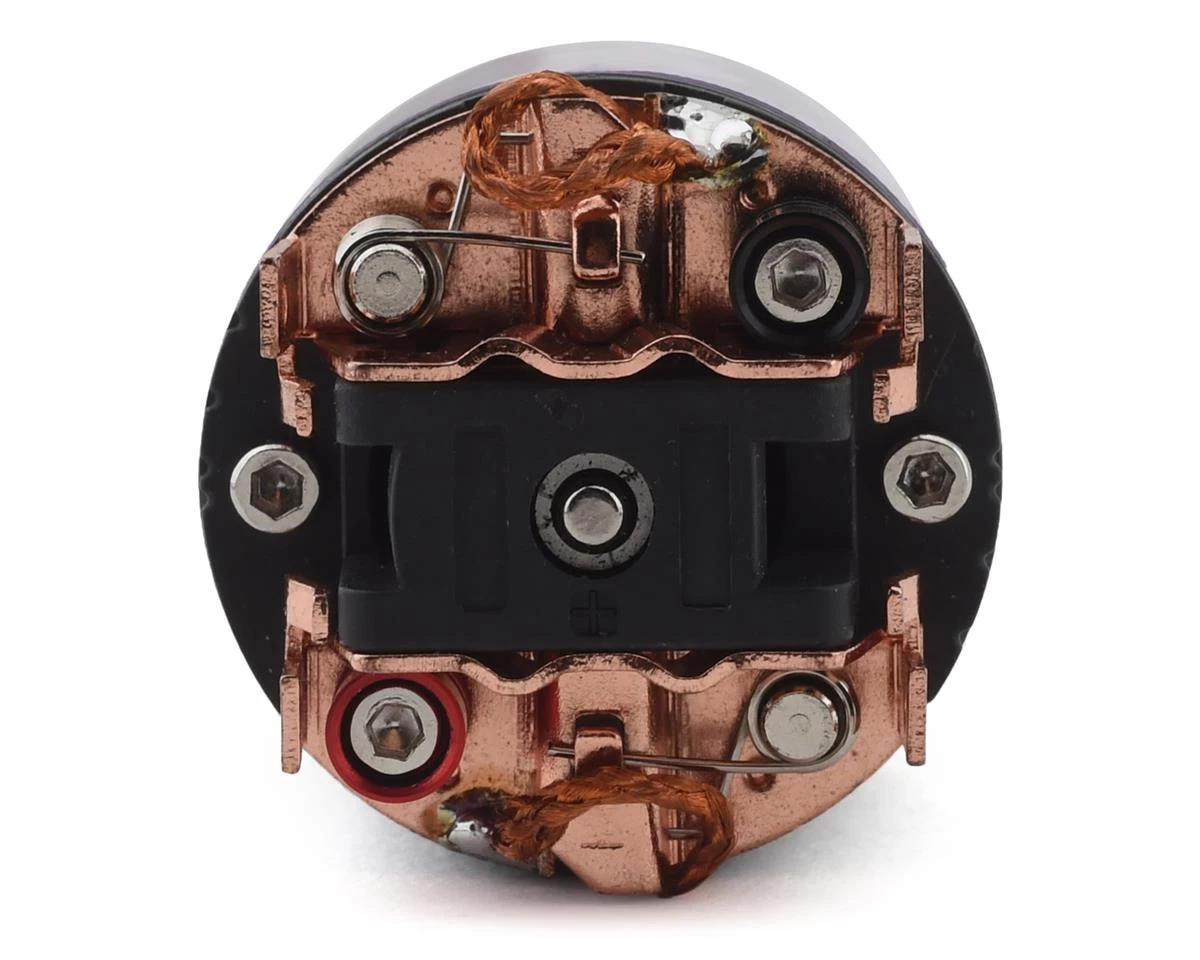

• Aligned Brush Hoods: Allows the brushes to make full contact allowing even wear and max power
• Tested: Each component is tested on precision calibrated equipment
• Fully Broken-In: Ready to install and run when you pull it out of the box

Specifications:

• Motor:
• Poles: 2
• Magnets: Dual HG6
• Brush Style: Standup
• Voltage Input: 3.7v-14.8v
• Break-In: 570 seconds at 3 volts, 30 seconds at 3.5 volts
• Timing: 0°
• Rotation: Normal
• Kv: 1410Kv
• Armature:
• Construction: Machine wound
• Stack Design: Skewed
• Slots: 3
• Wire Type: Copper Round
• Balance Type: Drill
• Turns: 45T
• Motor Dimensions:
• Weight: 6 ounces
• Length: 54mm (2.125″)
• Diameter: 35.85mm (1.41″)
• Shaft Size: 3.175mm (1/8th)
• Mounting Pattern: Standard 540 M3x25mm

This product was added to our catalog on July 2, 2020
