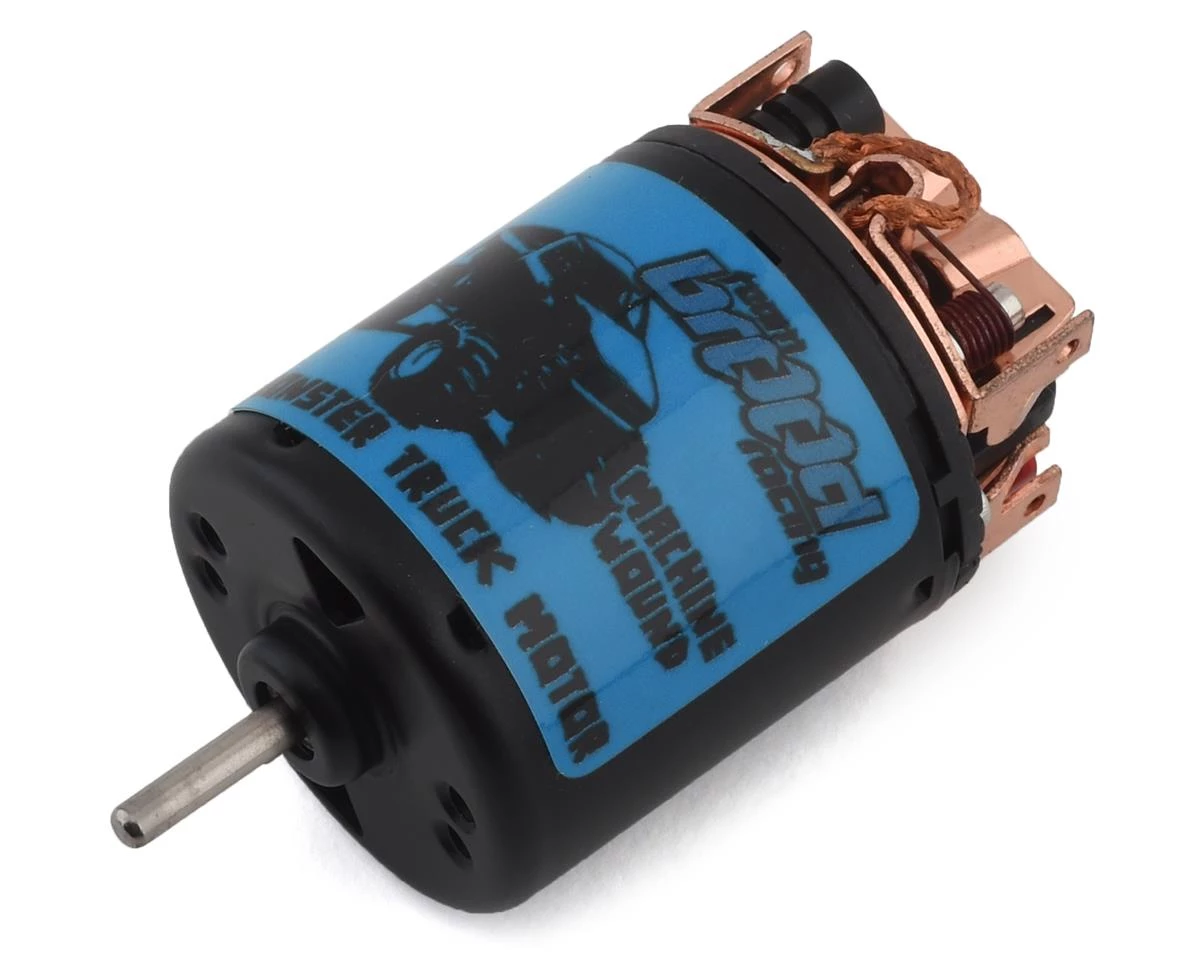

Team Brood Monster Truck Machine Wound 540 Clod Buster Motor (23T)

The Team Brood Monster Truck Machine Wound 540 3 Segment Brushed Motor was developed specifically for spec solid axle monster truck racing. This motor is set to 0 degrees timing, and is ready to rip right out of the box. Grab a one and take advantage of the tricks and tweaks that only a veteran motor builder can offer!

Specifications:

• General:
• Poles: 2
• Magnets: Dual CR6

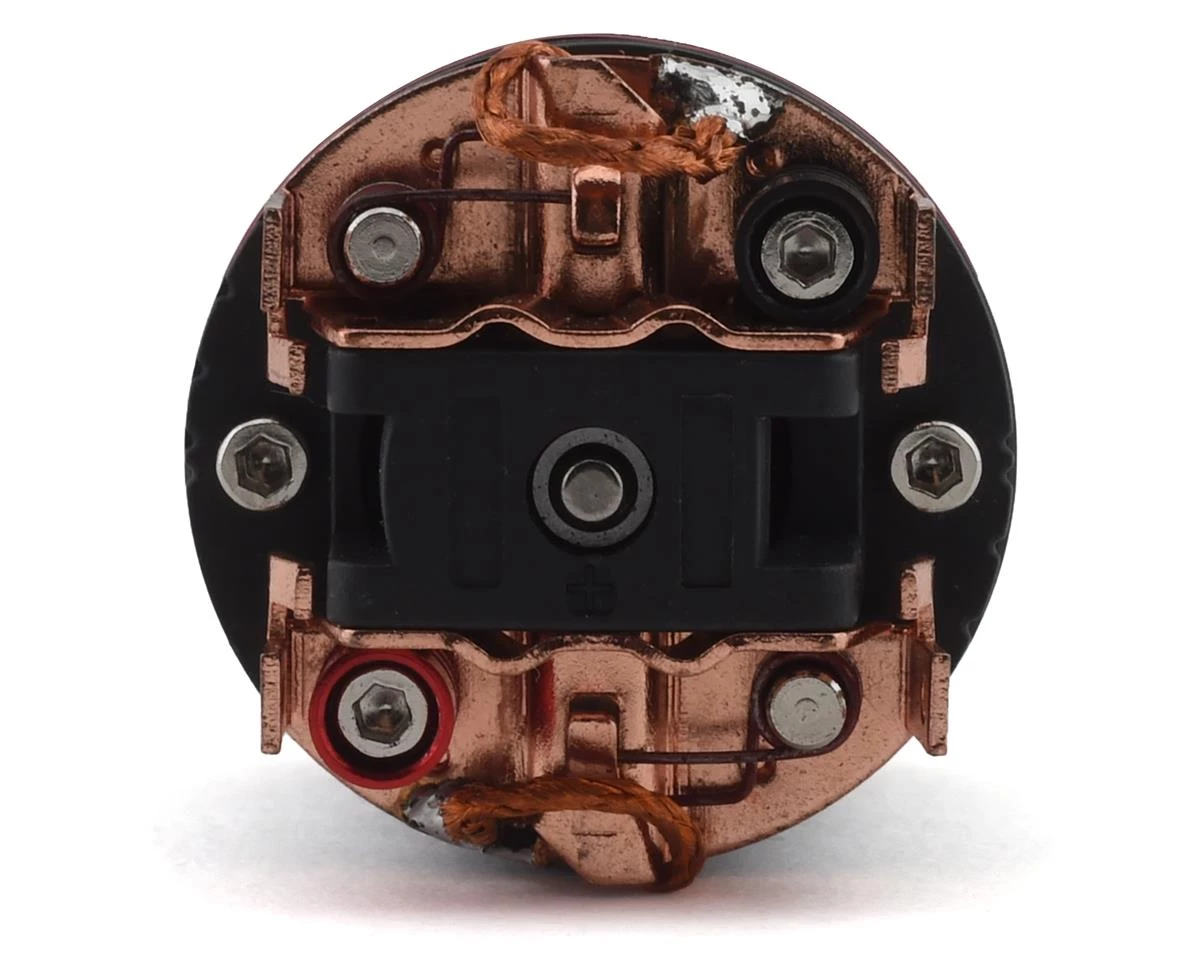

• Brush Style: Standup
• Voltage Input: 3.7v-14.8v
• Break-In: 300 seconds at 3 volts, 30 seconds at 3.5 volts
• Armature:
• Construction: Machine Wound
• Lamination Size: .014″
• Stack Design: Straight
• Slots: 3
• Web: 4mm
• Commutator Size: 7.5mm (.300″) Small
• Wire Type: Copper Round
• Balance Type: Epoxy
• Turn Count: 23 Turns
• Dimensions:
• Weight: 6 ounces
• Length: 54mm (2.125″)
• Diameter: 35.85mm (1.41″)
• Shaft Size: 3.175mm (1/8th)
• Mounting Pattern: Standard 540 M3x25mm

This product was added to our catalog on June 2, 2022
