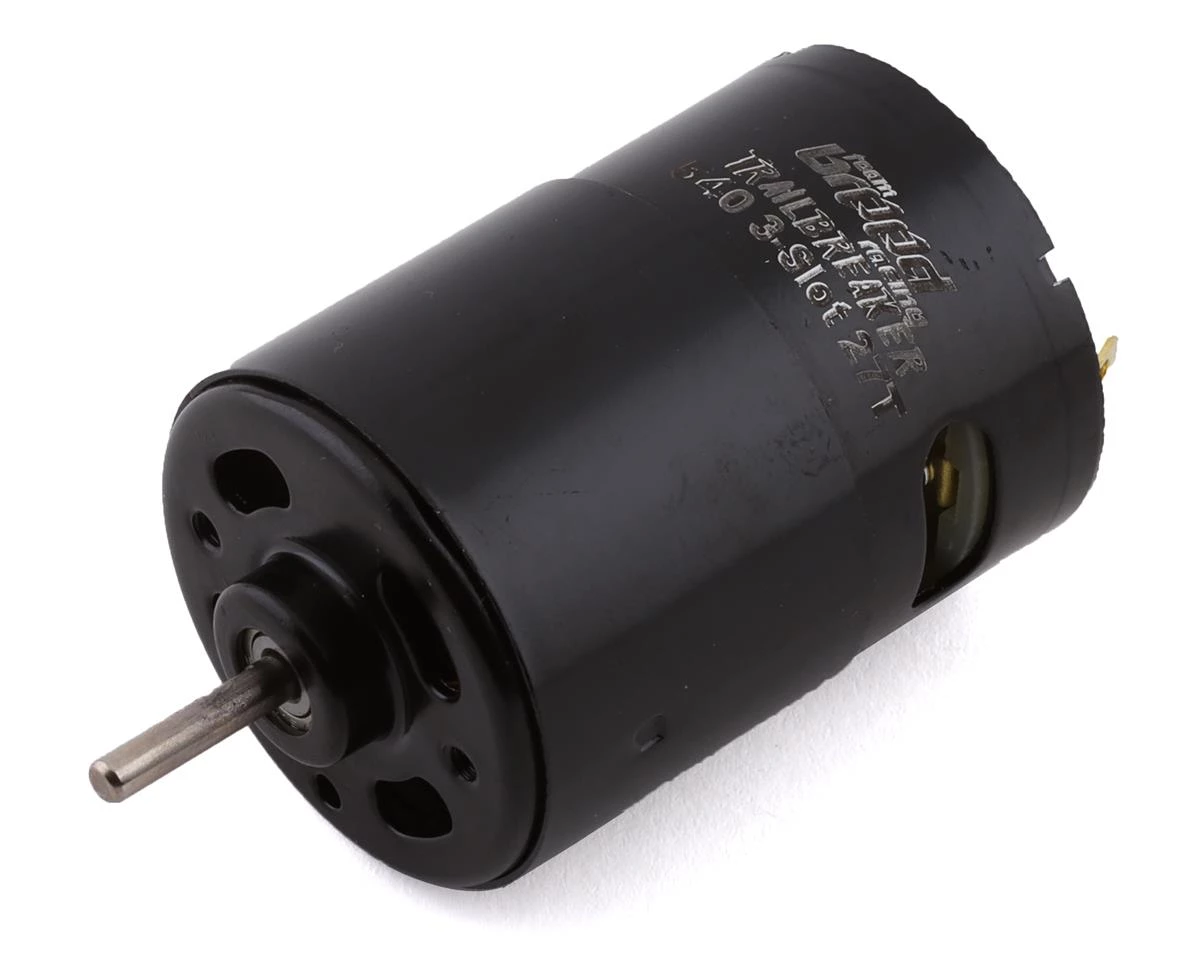

Team Brood Trailbreaker 540 Sealed Can 3 Slot Dual Magnet Brushed Motor (27T)

The Team Brood Trailbreaker 540 27 Turn is built to provide excellent performance at a budget friendly price. The Trailbreaker 540 features a 3-Slot armature for the perfect balance of RPM, torque and smooth startup. The 540 size can allows easy installation in a wide variety of trucks, while still providing excellent torque, braking and horsepower. Optimal wire sizes to go with the most popular winds help create excellent power, wheel speed and torque. The Trailbreakers are built with the best parts available, so they will perform under extreme conditions and environments, with less risk of failure like a typical sealed can motor.

When compared to other sealed can options, these motors feature dual ball bearings for improved efficiency and smooth operation, YG45 magnets for maximum torque and braking power, and an added “torque ring” for even more torque, braking power and overall efficiency. Every motor is engraved with name, logo and turn for a durable identification system completely resistant to the environment, while each and every motor is fully broken in and tested prior to shipping so you know you are getting the best bang for your buck.

• General:
• 3-Slot Machine Wound Armature
• 540 Dual Magnet Can with YG45 magnets – Maximizes torque and braking
• 1.1mm thick Can – Strengthens the magnetic field for maximum torque and braking with a durable finish
• Torque Ring – Increases Torque, Braking and Efficiency.
• Zero Timing – Allows to be installed in either normal or reverse applications
• Dual Ball Bearings – Reduces friction provides increased efficiency and power
• Sealed Endbell – Helps keep out the elements
• Long-Wear Brushes –  Long lasting performance brushes
• 1/8th Shaft Diameter – For Standard RC Pinions
• Standard 540/550 M3 Mounting Holes on 25mm Spacing
• Internal Cooling Fan – Lower operating temperatures
• Build:
• Laser Engraved – Provides an element proof marking for easy identification
• Fully Broken-In – Ready to install and run
• Tested – Motors are given basic tests after break in to insure correct performance
• 30 Day Limited Warranty

• Build:
• Poles: 2
• Magnets: Dual YG45
• Voltage Input: 3.7v-14.8v
• Break-In: 600 seconds at 5 volts
• Armature:
• Construction: Machine Wound
• Lamination Size: .014″
• Stack Design: Straight
• Slots: 3
• Wire Type: Copper Round
• Balance Type: Drill
• Dimensions:
• Weight: 180 Grams +/- 5
• Length: 55.25mm
• Diameter: 35.05mm w/o Torque Ring; 37.00mm w/ Torque Ring
• Shaft Size: 3mm (1/8th)
• Mounting Pattern: Standard 540 M3x25mm
